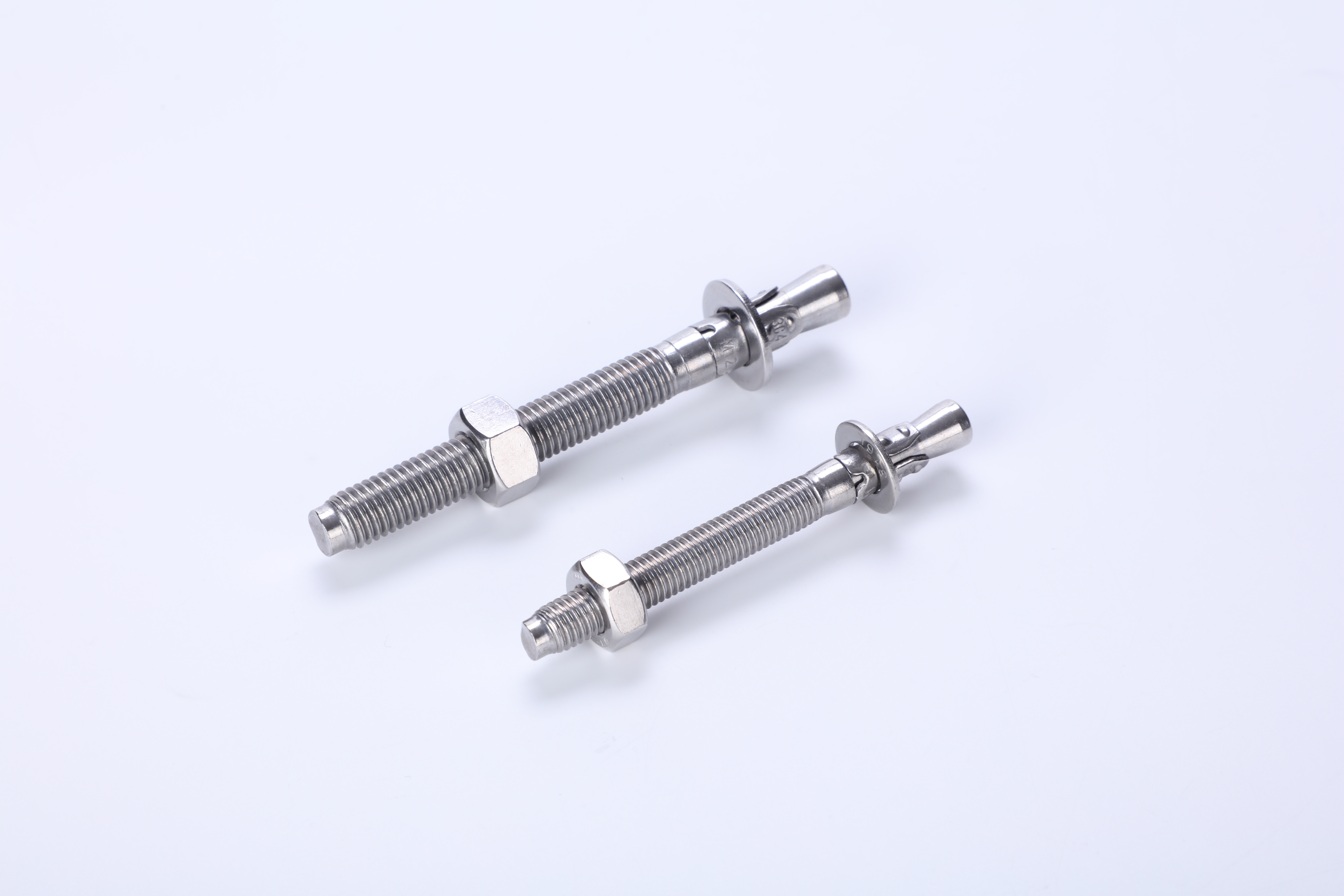

Engineers, contractors, and DIY enthusiasts frequently ask the same critical question. How much weight can a wedge anchor hold? You need precise load capacities before fastening heavy structural elements to solid concrete. Guesswork simply does not belong in construction or heavy installations. There is no single "magic number" for holding capacity. Instead, holding power relies on a systemic calculation. It depends entirely on the anchor's diameter, the embedment depth, and the compressive strength of your base concrete.
We measure concrete strength in pounds per square inch (PSI). Our goal is to provide reliable baseline holding capacities. We will explain the crucial difference between ultimate and allowable loads. You will learn a proven framework for selecting the correct wedge anchor for safety-critical applications. Mastering these concepts prevents costly field failures. You can confidently secure machinery, structural columns, and heavy brackets once you understand these core engineering principles.
The 4:1 Rule: Industry safety standards dictate that the safe working load (allowable load) should never exceed 25% of the anchor’s ultimate failure load.
Concrete dictates capacity: In most tension failures, the concrete breaks (spalling/cone failure) before the steel wedge anchor snaps.
Tension vs. Shear: Capacity must be evaluated based on both pull-out force (tension) and downward weight (shear).
Installation matters: Improper hole cleaning, incorrect torque, or ignoring minimum edge distances can reduce holding capacity by over 50%.
Misunderstanding manufacturer data sheets leads to catastrophic structural failures. Many novice builders look at a specification sheet, see a high number, and assume the anchor can safely hold that exact weight. This assumption introduces severe safety risks. You must understand the distinct difference between ultimate load and allowable load.
The ultimate load defines the exact weight at which the fastening system catastrophically fails. Engineers determine this number during controlled laboratory testing. They apply increasing force until the anchor either pulls out, shears off, or the concrete shatters. You should never use the ultimate load number for project planning. It represents absolute failure. If a specification sheet says an anchor has an ultimate tension load of 4,000 lbs, applying 4,000 lbs in the real world will almost certainly cause a structural collapse.
The allowable load represents the safe working load for your specific application. Industry standards dictate a strict safety margin. You calculate the allowable load by dividing the ultimate load by a safety factor. For static loads, you generally use a safety factor of 4. You simply divide the ultimate failure point by 4 to find the safe working capacity. Dynamic or vibratory loads require even higher safety factors.
Reputable manufacturers base their compliance documentation heavily on allowable loads. Brands like Simpson Strong-Tie, DeWalt, and ITW Red Head publish extensive charts. These charts show allowable loads in specific concrete PSI ratings. Always design your fastening systems around the allowable load.
Holding capacities vary significantly based on the base material. The numbers below assume standard carbon steel anchors installed in 3000 to 4000 PSI solid, uncracked concrete. These figures represent the allowable load, meaning the 4:1 safety factor is already applied.
Anchor Diameter | Typical Embedment Depth | Est. Allowable Tension (lbs) | Est. Allowable Shear (lbs) |
|---|---|---|---|
1/4" | 1-1/8" | 250 – 300 | 400 |
3/8" | 1-1/2" to 2" | 600 – 800 | 1,000 |
1/2" | 2-1/4" | 1,200 – 1,500 | 1,800 |
5/8" to 1" | 4"+ | 2,500 – 6,000+ | 3,000 – 8,000+ |
1/4" Wedge Anchor: Installers use these for lightweight applications. They require a minimum embedment of 1-1/8 inches. Expect an estimated allowable tension around 250 to 300 lbs. The allowable shear capacity sits near 400 lbs. They work perfectly for electrical boxes, lightweight conduit, and small signage.
3/8" Wedge Anchor: This size serves as a common standard for medium-duty tasks. Typical embedment ranges from 1-1/2 to 2 inches. You gain an estimated allowable tension of 600 to 800 lbs. The allowable shear jumps to roughly 1,000 lbs. Installers rely on these for strut channels, pipe supports, and heavy shelving.
1/2" Wedge Anchor: Contractors choose this size for heavy structural components. A standard 2-1/4 inch embedment yields an allowable tension of 1,200 to 1,500 lbs. The shear strength climbs to 1,800 lbs. They secure base plates, heavy machinery, and structural steel columns.
5/8" to 1" Wedge Anchors (Heavy Commercial): These massive anchors handle extreme industrial loads. Capabilities scale rapidly from 2,500 lbs up to well over 6,000 lbs of allowable tension. They demand deep embedment depths, often exceeding 4 inches. They also require high-strength concrete to prevent base material failure. You will see these securing large industrial equipment, racking systems, and structural building frames.
You must evaluate how the weight actually interacts with the bolt. Fasteners experience different types of stress depending on the mounting orientation. Identifying the dominant force helps you select the correct wedge anchor and avoid unexpected failures.
Tension refers to the force pulling the anchor directly out of the drilled hole. You encounter pure tension when hanging items from a concrete ceiling. Wind uplift on a structural base plate also generates high tension. Tension capacity relies heavily on concrete strength and embedment depth. When tension exceeds capacity, the concrete usually fails first. The force pulls out a cone-shaped chunk of concrete, leaving the steel bolt intact.
Shear force pushes straight down or sideways against the bolt. You see shear forces when mounting a heavy bracket to a vertical wall. Machinery resting on a concrete floor also exerts shear stress when it vibrates horizontally. Shear capacity is generally higher than tension capacity. It relies primarily on the shear strength of the steel bolt itself. The steel will eventually yield and snap if the shear weight becomes too immense.
Many real-world applications experience both forces simultaneously. A heavy shelf on a wall pulls away from the wall (tension) while gravity pushes it down (shear). Applications experiencing both forces require complex engineering calculations. Engineers use interaction formulas to ensure the combined stress does not exceed the anchor's total capacity. Consult a professional if your application involves heavy combined loads.
Laboratory numbers represent ideal conditions. Real-world job sites rarely match these perfect scenarios. Field experience reveals several reasons why anchors fail well below their rated capacities. You must control these implementation risks.
Placing anchors too close to the edge of a concrete slab guarantees failure. Anchors transfer load into the base material by creating a "stress cone." This invisible cone of pressure radiates outward and upward from the embedded expansion clip. If you place the bolt too close to an edge, the stress cone intersects the boundary. The concrete simply blows out under load. Similarly, placing anchors too close to each other causes their stress cones to overlap. This multiplies the internal pressure and causes premature concrete fracture.
Standard load ratings assume solid, uncracked concrete. Base material quality varies wildly in the field. Concrete poured at 2000 PSI holds significantly less weight than a robust 4000 PSI mix. Furthermore, concrete naturally cracks over time. Installing standard anchors in cracked concrete severely reduces their expansion grip. Projects in seismic zones require specially rated seismic anchors designed specifically for cracked concrete environments.
Manufacturers specify a strict minimum embedment depth for every size. Failing to drill deep enough prevents the anchor from developing its full holding power. Sometimes, installers hit rebar or a hard aggregate. They stop drilling prematurely. If the anchor does not reach the minimum embedment depth, the allowable load drops drastically. Always measure your drill bit and mark the required depth.
Human error ruins even the best engineered products. Not blowing concrete dust out of the drilled hole reduces necessary friction. The dust acts like a lubricant, allowing the clip to slip upward during tightening. Over-torquing the nut represents another major error. Applying excessive torque stretches the steel threads. It damages the expansion clip and places extreme pre-stress on the surrounding concrete. Always use a calibrated torque wrench.
Choosing the correct fastening system requires a logical process. Follow this decision-stage framework before making a purchase. It ensures safety, compliance, and longevity.
Step 1: Environmental Assessment (Material Selection)
You must match the anchor material to the environment. Installing the wrong material leads to rapid corrosion and ultimate failure. Use zinc-plated carbon steel strictly for indoor, dry applications. Choose Hot-Dipped Galvanized (HDG) steel for outdoor use or when fastening into treated wood. Highly corrosive environments, such as marine areas or chemical plants, demand 304 or 316 Stainless Steel.
Step 2: Base Material Verification
Verify your base material before drilling. You can only use a wedge anchor in solid concrete. Never install them in hollow concrete block, brick, or masonry. The intense expansion force will crack and shatter these brittle substrates. If you face hollow blocks or brick, switch your specification to a sleeve anchor or a chemical adhesive system.
Step 3: Compliance & Certification
Commercial builds require strict documentation. Verify the anchor possesses an ICC-ES evaluation report. This certification proves the product passed rigorous testing standards. Check if the report covers both cracked and uncracked concrete. This becomes mandatory if you operate in a seismic zone.
Always advise your team to consult a structural engineer for critical loads. Direct users to technical product specification sheets. These documents provide the exact torque requirements, edge distance guidelines, and allowable load data needed for a safe installation.
A wedge anchor's true holding capacity results from a specific combination of factors. It relies equally on steel strength, the concrete's compressive PSI, and flawless installation practices. You cannot guess load ratings based on the bolt's appearance alone. Always design your connections based on allowable loads, strictly maintaining a minimum 4:1 safety factor.
Carefully evaluate whether your application faces tension, shear, or combined forces. Respect minimum embedment depths and edge distances. Clean your holes thoroughly and use a torque wrench to finalize the connection. If you need precise data for your next project, browse the product catalog by size. You can download technical specification PDFs directly. Contact the sales engineering team for project-specific sizing and expert guidance.
A: An M10 metric anchor acts similarly to a 3/8" imperial anchor. In standard 3000 PSI uncracked concrete, an M10 anchor typically provides an allowable tension load of roughly 600 to 800 lbs. It provides an allowable shear load of approximately 1,000 lbs. Always verify the manufacturer's specific technical data.
A: No. You must never use them in brick, hollow block, or cinder block. The mechanical clip creates immense outward pressure during installation. This extreme expansion force easily cracks and shatters brittle or hollow base materials. Use sleeve anchors or epoxy adhesive systems instead.
A: Over-tightening causes severe structural damage. It can strip the steel threads entirely. It may also pull the anchor body upward, causing it to slip out of the hole. Furthermore, excessive torque pre-stresses the surrounding concrete, drastically increasing the risk of immediate concrete cone failure.
A: It increases capacity only up to a certain point before plateauing. You must meet the minimum embedment depth to achieve the rated allowable load. Drilling slightly deeper provides a cavity for excess concrete dust, ensuring the anchor seats properly. However, excessive depth does not continuously multiply the holding power.
