Have you ever needed to remove a concrete anchor but weren't sure how to do it safely? Concrete anchors are crucial for securing heavy items, but removing them can be tricky.
Whether you're renovating, reconfiguring, or repairing, knowing how to remove concrete anchors correctly is essential. Improper removal can damage surrounding structures.
In this post, we’ll guide you through the right way to remove concrete anchors, step by step, ensuring you avoid mistakes and protect your surfaces.
When removing concrete anchors, having the right tools is crucial for a smooth and safe process. Here are the essential tools you'll need:
Choosing the correct drill bit size is key for efficient anchor removal. Use a drill bit that matches the anchor's diameter. Drilling around the anchor creates space, making it easier to loosen or extract. A hammer drill is often necessary to handle tough concrete.
Hammers and chisels are used to gently tap around the anchor. This helps to loosen the anchor without damaging the surrounding concrete. Light, controlled tapping can gradually break the anchor’s grip, making it easier to remove.
Sometimes, cutting the anchor is necessary. A hacksaw or grinder is ideal for removing the top part of the anchor or cutting off a stubborn section. Be careful to avoid damaging the concrete surface. Grinders can also work well when removing protruding rods.
For tougher anchors, specialized extraction tools like the Boltbreaker can make the job easier. This tool simplifies the removal of difficult anchors, especially when dealing with high-torque situations or strong materials like SAE Grade 8 carbon-alloy steel bolts. It applies pressure to snap off the protruding bolt, without generating sparks or dust, making it safer and cleaner.
Safety is always a priority. Always wear protective gear like safety goggles, gloves, and hearing protection. Concrete removal can produce debris and dust, so these precautions will help keep you safe while working.
Before starting, make sure your workspace is clear and well-lit. Gather all necessary tools: a drill, hammer, chisel, cutting tools, and safety gear. Having everything within reach ensures the process runs smoothly.
Start by drilling around the anchor. Use a drill bit that matches the anchor’s size. This creates space and weakens the anchor's grip. Take your time to ensure you're not damaging the surrounding concrete.
Once you've drilled around the anchor, it’s time to loosen it. Gently tap the hammer on the chisel’s edge, focusing on the anchor’s edges. Work around the anchor to gradually loosen it without causing cracks in the concrete.
If the anchor refuses to budge, cutting may be the solution. Use a hacksaw or grinder to cut off the anchor, but only if it’s protruding enough. Alternatively, use a tool like the Boltbreaker, which makes breaking off anchors easier and cleaner, leaving the surrounding area intact.
Wedge anchors are tough to remove, but it’s possible. You can either pound it deeper into the concrete (if the hole allows), or use a grinder or hacksaw to cut it off. If there’s a protruding rod, the Boltbreaker can help break it cleanly.
To remove sleeve or strike anchors, first remove the washer and nut. If the anchor is deep enough, you can tap it into the concrete. If not, use a hacksaw or grinder to cut the rod. After cutting, flatten the remaining piece with a hammer.
These anchors can be tricky due to their flat heads. For split-drive anchors, use a flat pry bar to pull them out, or a grinder to remove the head. For hammer-drive anchors, remove the head first, then drill through the remaining body.

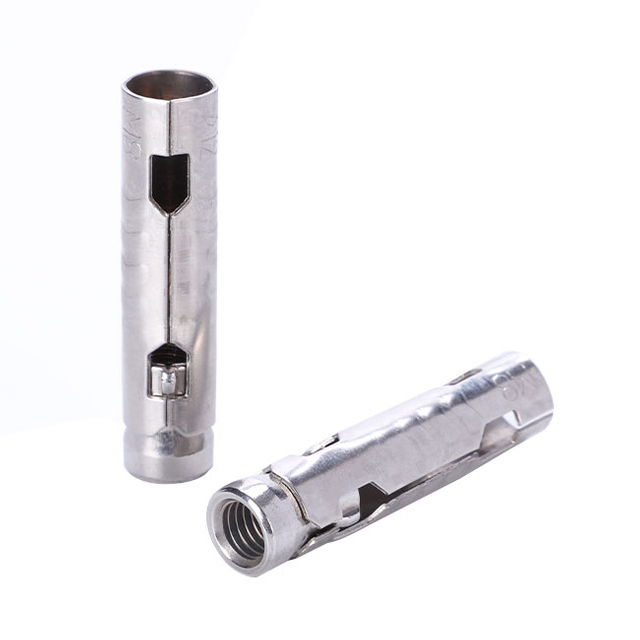

Female anchors, like drop-in and machine screw anchors, are more challenging to remove. These anchors sit below the surface, so you'll likely need to drill or tap them further down. In many cases, it’s best to leave them in place and patch over the hole. If removal is necessary, be cautious to avoid damaging the surrounding concrete.
When removing concrete anchors, it's crucial to protect the surrounding surface. Even a small mistake can cause cracks or holes that may require costly repairs. The right technique ensures you avoid such damage.
Controlled Drilling: Always drill slowly and steadily around the anchor. This minimizes pressure on the surrounding concrete, preventing cracks.
Tapping Carefully: When using a hammer and chisel, tap gently. Sudden, forceful strikes can damage the surface, leaving visible marks or deeper cracks.
If the concrete gets cracked during the removal process, don't worry! There are several ways to fix it.
Concrete Repair Products: Use specialized repair kits designed to patch cracks. They are easy to apply and restore the surface.
Smoothing the Surface: After patching, sand the area smooth to ensure a level finish that matches the rest of the surface.
Different methods work better for different types of anchors. Here’s a quick comparison of the most common techniques.
| Method | Effectiveness | Best For | Risks |
|---|---|---|---|
| Hammering | High | Wedge and strike anchors | Surface cracks |
| Drilling | Medium | Most anchors with enough embedment | Concrete damage |
| Cutting (Hacksaw/Grinder) | High | Protruding parts | Surface damage, sparks |
Removing concrete anchors properly ensures a safe and effective result. Whether it's wedge, sleeve, or female anchors, use the right technique for each type.
Proper anchor removal is crucial for maintaining the integrity of your structure. It avoids unnecessary damage and costly repairs.
Always remember to use the right tools, work carefully, and prioritize safety. Preparation is key for a smooth process.
Yes, with the right techniques and tools, you can remove anchors without damaging the concrete. Use controlled drilling and gentle tapping.
You’ll need a drill, appropriate drill bits, a hammer, a chisel, and possibly cutting tools like a hacksaw or grinder. Advanced tools like the Boltbreaker may also help.
If an anchor is stuck, try increasing the drill bit size or using an anchor extraction tool. Patience and steady force are key.
Yes, in many cases, you can reuse the hole. However, if the hole is damaged or enlarged, you may need to patch it before reusing.
After removing the anchor, clean the hole and surrounding area with a brush or vacuum. This helps ensure a smooth surface for any future installations.
